Future 2018

Future 2018

Type Of Detector
Professional Metal detectors / Future 2018
Manufacturer
Okm

It is now 20 years ago that the first metal detector from the Future Series has been created by Mr. Andreas Krauß, one of today's owners of OKM. After many years of development and improvement we are happy to announce the new metal detector Future 2018.


Contact Us

General Description

This special Anniversary Edition has been primarily designed for treasure hunters who like to enter the awesome field of 3d metal detection for a reasonable price. With only one scanning probe, that contains all necessary electronics and the battery, you can survey many different kind of terrains. You may use the Future 2018 in vertical or horizontal position by simply turning it around and selecting the proper operating mode:

The redesigned 'New Edition' of Rover C II includes the following special features:

  • Ground Scan
  • Conduct graphical 3d measurements for detailed analysis on a Tablet PC.
  • You can use the detector in vertical and horizontal mode.
  • Live Sound
  • Process an acoustical magnetic field measurement to detect ferrous metals
  • You can use the detector in vertical mode only.

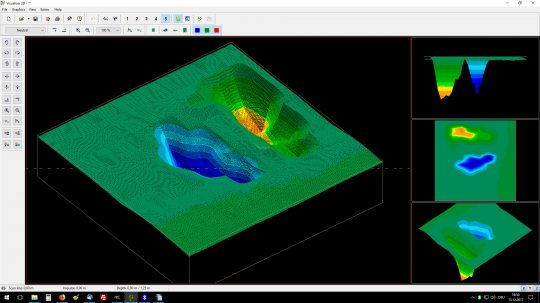

Like other OKM detectors the Future 2018 utilizes OKM's approved and reliable sensor technology to obtain measurement data. All scan values are transferred wireless to a connected Tablet PC or computer running our Visualizer 3D software.

The Future 2018 metal detector is fully controlled via Tablet PC using OKM's Visualizer 3D software. After the wireless data connection has been established you select an operating mode (Live Sound or Ground Scan), select the orientation of the scanning probe and start surveying the area of interest.

cavity detection


You can use Future 2018 ground scanner to detect many different kind of buried items:

  • Lost coins, rings and jewelry
  • Buried ancient hoards and treasure caches
  • Hidden boxes, chests, vases and amphoras filled with precious items
  • Underground tunnels, caves, cellars, tombs and sepulchers

While conducting your measurement the scan data immediately appears on your Tablet screen. So you won't miss any target that lies under the surface. Wireless Bluetooth headphones receive acoustical information about your scan or target.

boxes and chests

Even if you never used a 3d ground scanner or metal detector before, the Future 2018 is easy to handle. Additionally our support and sales team is ready to assist you in operating your detector. We also offer training courses in our company in Altenburg, Germany as well as in our subsidiary OKM Emirates FZE in the United Arab Emirates.

Technical Specification

Control unit
Dimensions (Length, Diameter) 950 mm, 65 mm
Weight about 2.5 kg
Protection Class IP40
Operating time (internal battery) approx. 12 hours
Charging time (internal battery) approx. 3 hours
Input (charger socket) 19 V DC / 3.16 A
Processor / Main CPU Cortex M3, 32 MHz
Processor / Slave CPU Cortex M0, 24 MHz
Sensor technology SCMI-15-D
Sample rate 1024 values / second
Measurement resolution 16 bit
Operating temperature -10 – 60 °C
Storage temperature -20 – 70 °C
Audio Bluetooth headphones
Air humidity 5 % – 75 %
Waterproof No
Data transmission (Bluetooth)
Technology Bluetooth
Frequency 2.4 – 2.4835 GHz
Maximum Transfer Rate 1 Mbps
Receiving Sensitivity -85 dBm
Maximum Range approx. 10 m
Computer, minimum requirements
CD-ROM drive minimum 4x
Interface (Data transmission) USB
Free disk space minimum 50 MB
Working memory (RAM) minimum 256 MB
Graphic card minimum 128 MB, OpenGL-compatible
Processor minimum 1.2 GHz
Operating system Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
